Unfilled block in Statigraphic Model

[Amirul]

Hi, I have developed the block model as per rockware tutorial and the striplogs etc resulted as expected. However when I process the statigraphic model, the model does not resulted as the usual model. The shapes does not fill in the outline box and there are some of the layers could not be seen unless it is set to explode view. Can someone advice me on why does my statigraphic block model does not fill in the box as in the Figure 1. The objective of my task was to develop the model as per Figure 2.



Thank you.





Figure 1



Figure 2

[Amirul]

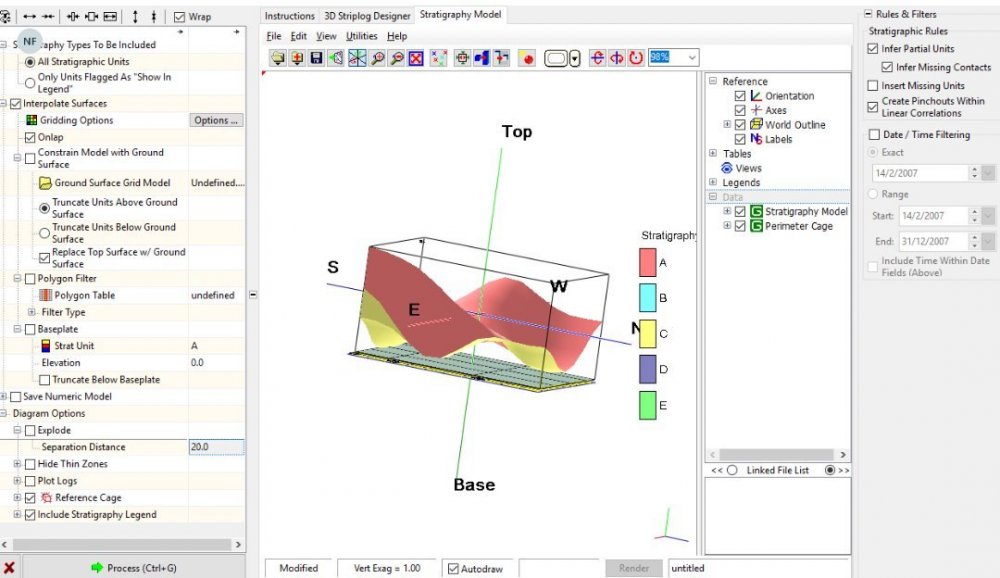

I'm not sure if the figure 1 above appears or not. But below is the supposed attached figure 1
