Rockworks does not display statigraphy block model

[Amirul]

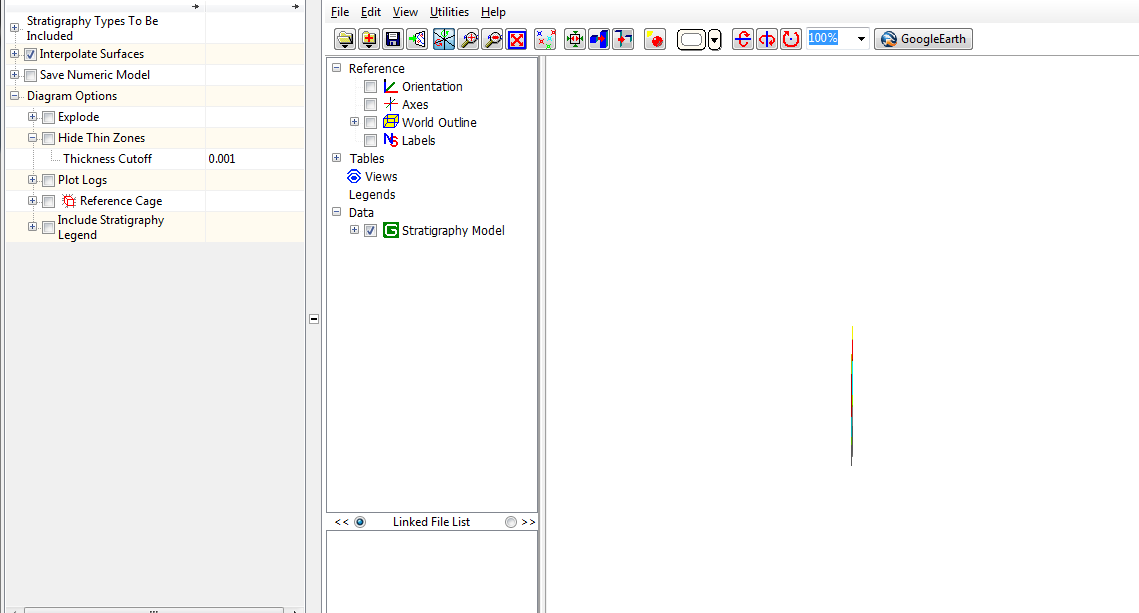

Hi, I wanted to develop my statigraphy model and I have done all the location map and strip logs successfully however I could not develop the statigraphy model as shown below:





I would really appreciate if someone could assist me on this

[Guest Molly]

Hi Amirul,



Without seeing your data, my first guess is that it is a dimensions issue. Did you hand-enter your project dimensions or scan your boreholes to establish them? Do the numbers look correct, along all axes, as displayed in the Dimensions pane at the top of the RockWorks program window?



Another possibility is bad data for one/several boreholes - Have you tried displaying the stratigraphy logs in 3D (Striplogs | 3D | Multiple) to see if the logs look correct in 3D space?



You are welcome to send us your data - use the Borehole Manager | File | Archive Database to Text and email the resulting ZIP file to support at rockware.com.



Molly M

RockWare
