Rose diagram help

Recommended Posts

Hello everyone,



I have just recently started using RockWorks for the first time, so if I'm something "dumb" be patient with me please.



I want to make a rose diagram from data a have in an excel sheet. These are the steps I'm making:



1 - I import the excel data to the utilities section;

2 - Click on grid and then on rose diagram;

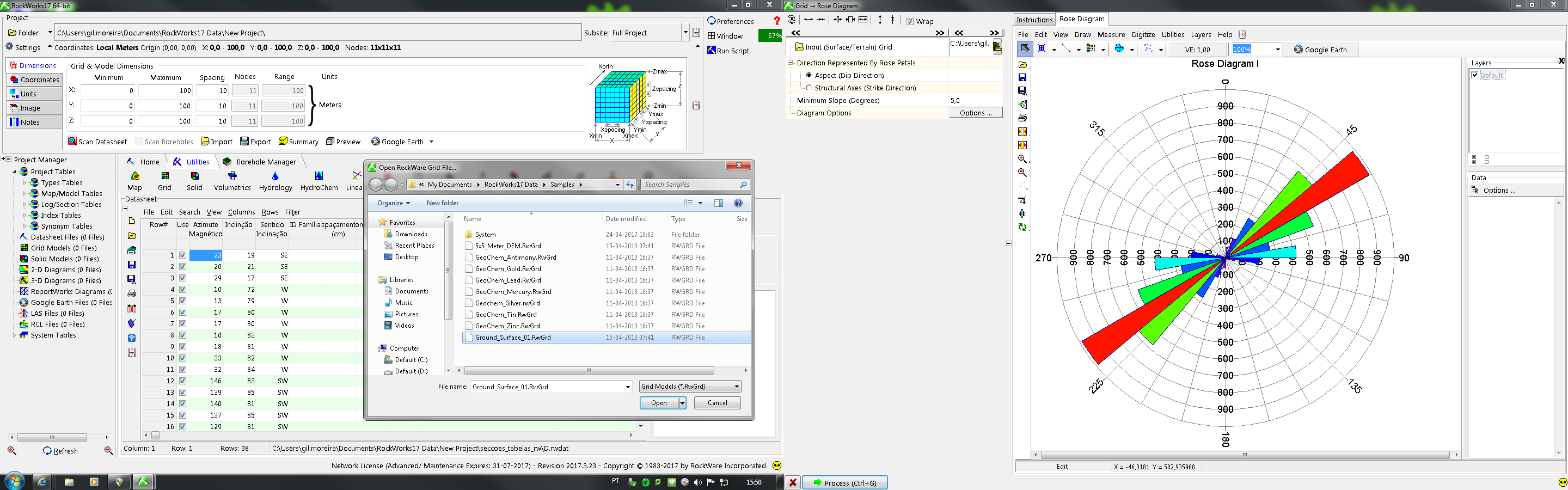

3 - It then asks me to chose an input (surface/terrain) grid, I open a file in the samples as you can see in the image below (I don´t have any other file);

4 - I don't change any other option;

5 - Process.



After doing this I get the same rose diagram even if I change the data in the utilities page to other values or a blank page...

I have tried it over and over again and get always the same result.



Please tell me what I'm doing wrong:



Thank you for your time :)



Image:
http://imgur.com/a/wenOs


Share this post


Link to post
Share on other sites

Hi Gil,



Use the Utilities Linears | Rose | From Bearings menu command to make a rose diagram from your azimuth and inclination data.



The Grid | Directional Analyses | Grid -> Rose Diagram menu is used to read a grid file to create a rose diagram.



Regards,

Tom B

RockWare Inc

Share this post


Link to post
Share on other sites
