Parvathy

Create stratigraphic section

3 posts in this topic

Hai

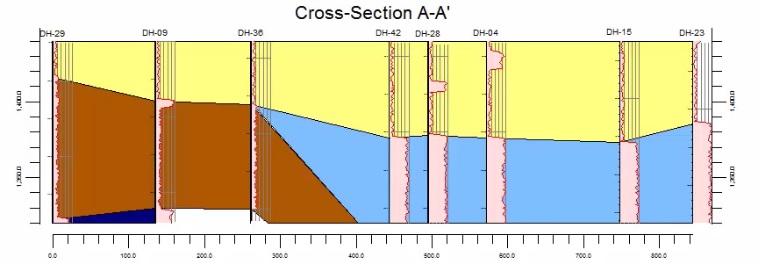

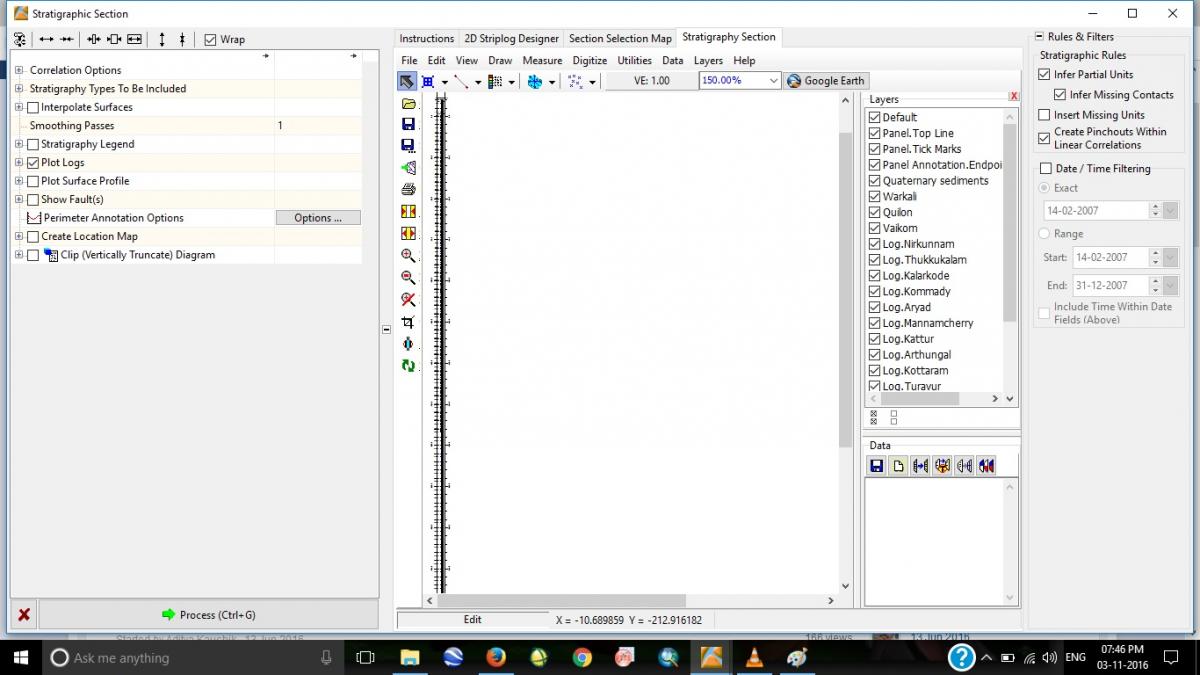

I have some borehole stratigraphic data. I want to create the entire startigraphy of my study area like the first attachment. Whille doing it in borehole manager stratigraphic section, I can't make that type of image and my output is also attached. Here is no one to knows about this. somebody can help me.




Share this post


Link to post
Share on other sites

It looks like a mismatch between project coordinates and elevation units. Also check that your boreholes have unique Easting's and Northing's.

Share this post


Link to post
Share on other sites

Hi Pavarthy,

RockWorks always starts out with a 1:1 aspect between the horizontal and vertical. When your boreholes are closely spaced and relatively deep, this may not be the optimal aspect ratio. You may be able to stretch out the horizontal dimension by specifying an aspect ratio of 0.5, 0.25, or 0.1.

Regards,

Tom B

RockWare Inc
